Application: Kiln, raw mill, grate cooler of 2000–10000 tpd cement lines
Temperature: Continuous 260°C, Peak 280°C
Inlet Dust Load: ≤1500 g/m³
Outlet Emission: ≤10 mg/Nm³
Warranty: 2 years; Filter bags: 3–4 years
Contract: EP / EPC
Delivery: Sea, air, or inland transport
Payment Terms: T/T, L/C, others
Dust content at inlet(g/m³):200、600、800、1000
Filtration air volume(m³):3720~7440、9300~18600、22300~31200、35520~40100、52300~59800、62780~67300、71700~89700、104680~119600
Working temperature(℃):80、110、120
Peak temperature(℃):150
Dust content at outlet(mg/Nm³):≤5、10、20
| Specification | Data |
| Air volume | 3720~119600 m³/h |
| Filtration area | 62~2492 m² |

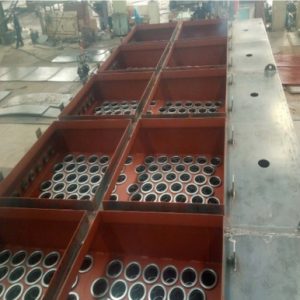

| Total number of filter bags | 62~2084 Piece |
| Velocity of filtration air | 0.80~1.00 m/s |
| Dust concentration at inlet | ≤1000 g/m³ |
| Dust concentration at outlet | ≤10 mg/Nm³ |
| Number of chambers | 2~16 Unit |

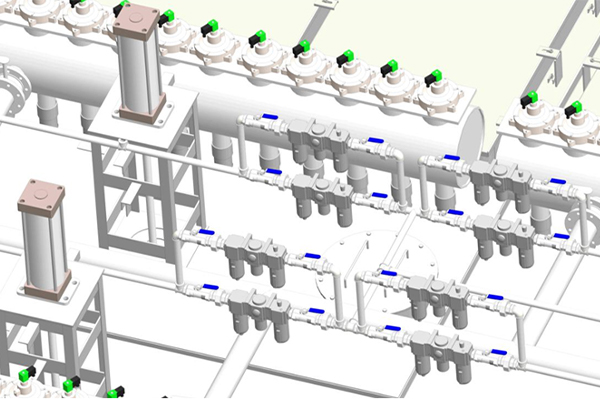

| Number of pulse valves | 3~32 Piece |
| Operation Temperature | 120℃ |
| Peak temperature | 150℃ |
| Equipment bearing negative pressure | ＜14000 Pa |
| Pressure difference between inlet and outlet | 1470~1770 Pa |
