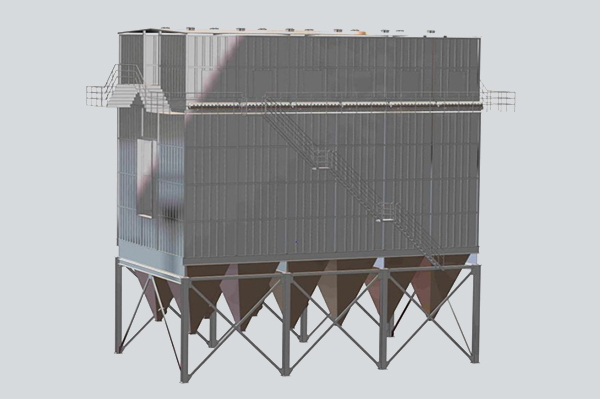

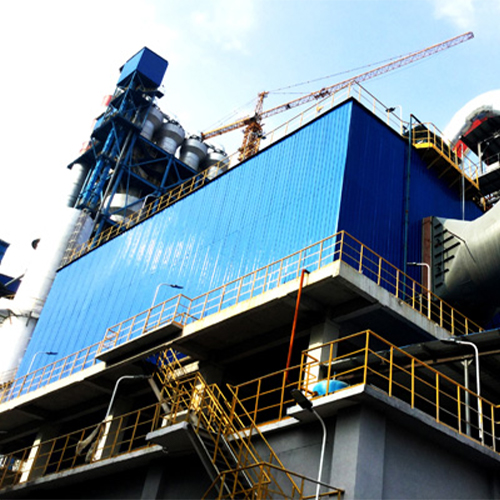

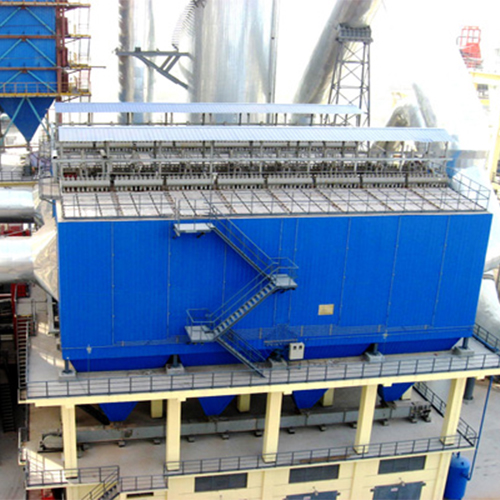

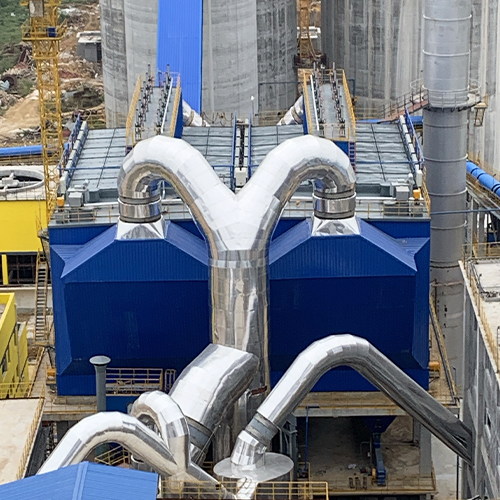

Application: Kiln, raw mill, grate cooler of 2000–10000 tpd cement lines
Temperature: Continuous 260°C, Peak 280°C
Inlet Dust Load: ≤1500 g/m³
Outlet Emission: ≤10 mg/Nm³

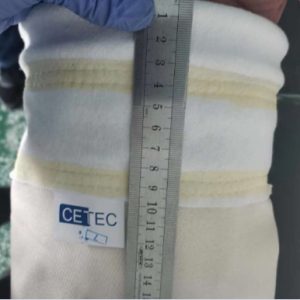

Warranty: 2 years; Filter bags: 3–4 years
Contract: EP / EPC
Delivery: Sea, air, or inland transport
Payment Terms: T/T, L/C, others
Dust content at inlet(g/m³):30、50、80、100、200、600、1000、1300、1500
Filtration air volume(m³):196000~429000、398000~515000、464000~601000、530000~686000、597000~772000、663000~858000、729000~944000、796000~1030000
Working temperature(℃):180、200、220、230、240、250
Peak temperature(℃):220、250、260、280
Dust content at outlet(mg/Nm³):≤5、10、20
| Specification | Data |
| Air volume | 196000~1030000 m³/h |
| Filtration area | 3840~50880 m² |

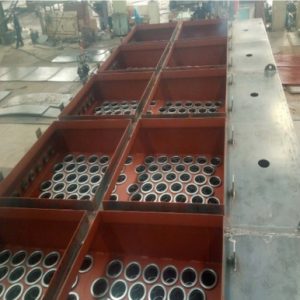

| Total number of filter bags | 1280~8448 Piece |
| Velocity of filtration air | 0.85~1.10 m/min |
| Dust concentration at inlet | ≤1500 g/m³ |
| Dust concentration at outlet | ≤10 mg/Nm³ |
| Number of chambers | 8~48 Unit |

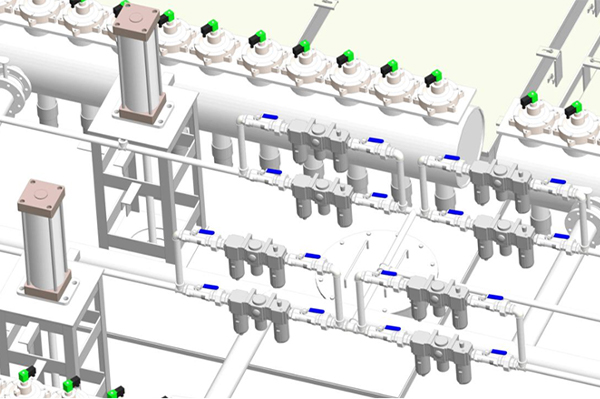

| Number of pulse valves | 88~528 Piece |
| Operation temperature | ≤260℃ |
| Peak temperature | 280℃ |
| Equipment bearing negative pressure | ＜120000 Pa |
| Pressure difference between inlet and outlet | 1000~1500 Pa，Max1800 Pa |
