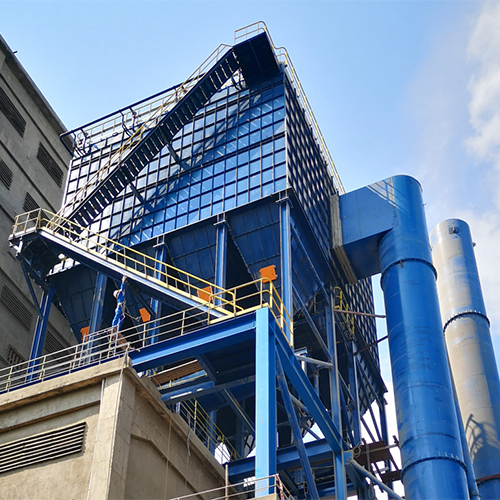

Application: Coal mills, cement grinding, clinker transport, and other high-dust points
Working Temp.: 120°C (peak 150°C)
Inlet Dust Load: ≤1000 g/m³
Emission Performance: ≤10 mg/Nm³
Warranty: 2 years; Filter bags: 3–4 years
Contract: EP / EPC
Delivery: Sea / air / inland transport
Payment Terms: T/T, L/C & others
Dust content at inlet(g/m³):30、50、80、100、200、600、1000
Filtration air volume(m³):6900~13390、17800~35700、26800~60100、66900~134500、157000~179400、201900~224300、247600~269100、296100~314000
Working temperature(℃):120
Peak temperature(℃):200
Dust content at outlet(mg/Nm³):≤5、10、20
| Specification | Data |
| Air volume | 6900~314000 m³/h |
| Filtration area | 93~4361 m² |
| Total number of filter bags | 96~3584 Piece |
| Velocity of filtration air | 1.20~2.00 m/min |
| Dust concentration at inlet | ≤1000 g/m³ |
| Dust concentration at outlet | ≤10 mg/Nm³ |
| Number of chambers | 3~28 Unit |
| Number of pulse valves | 3~56 Piece |
| Operation Temperature | 50~120℃ |
| Peak temperature | 150℃ |
| Equipment bearing negative pressure | ＜5000 Pa |
| Pressure difference between inlet and outlet | 1000~1500 Pa，Max1800 Pa |
