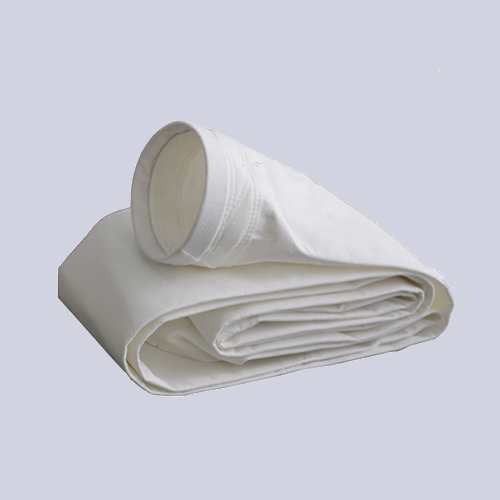

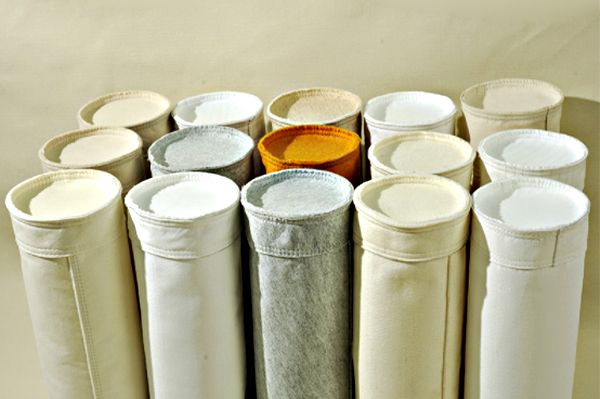

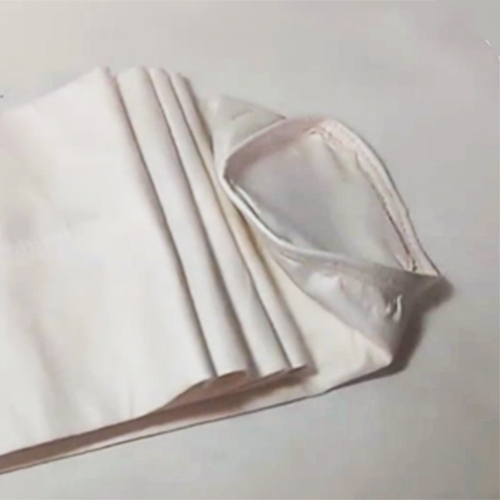

PTFE membrane needle felt filter bag
Product : PTFE membrane needle felt filter bag
Application : Applied for dust collection of cement production line with capacity from 1000tpd to 12000tpd
Working condition : Middle temperature
Apply temperature : ≤240℃,peak value:260℃
Dust content inlet : ≤1300 g/m³
Performance : ≤10 mg/Nm³
Warranty : 3 years
Contract : EP/EPC
Delivery : Sea/air/inland transportation
Payment terms : T/T, L/C or others
Working temperature（℃）:240
Peak temperature（℃）:260
Dust content(g/m³):200、500、800、1000、1300
Diameter(mm):115、120、125、130、145、150、155、160
Length(mm):2000、2450、3000、3200、3800、4800、6000、7000、8000
| Specification | Data |
| Material | PTFE fiber |
| Weight | 800 g/m² |
| Thickness | 1.0~1.5 mm |
| Mechanical treatment | Heat setting, singeing and calendaring |
| Chemical treatment | PTFE impregnating |
| Air permeability | 1.8~3.6 |

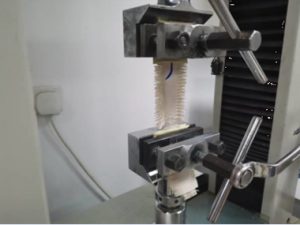

| Break elongation | Warp:≥600 N/5cm Weft: ≥800 N/5cm Warp:＜20% Weft:＜50% |
| Break strength | 1.95 Mpa/min |
| Working temperature | ≤240℃ |
| Peak temperature | 260℃ |
| Anti-acid | Excellent |
| Anti-alkali | Excellent |
| Anti-oxidation | Good |
| Anti-abrasion | Moderate |
| Resistance to hydrolysis | Excellent |

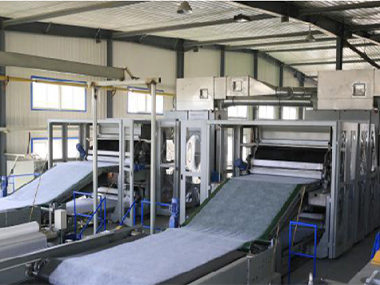

Carding short fibers to open completely
Overlapping net with good continuity
Proper depth of pre needling to avoid damaging the strength
The felt has good adhesion after main thorn and shaving
The corrosion resistance of the fabric can be improved by chemical impregnation, extrusion, de-hydration, drying, sintering and treatment

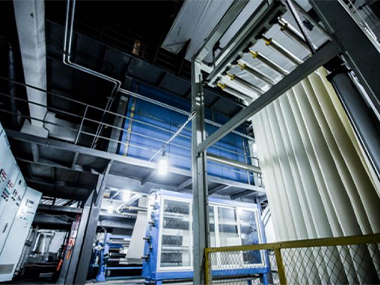

Stretching and setting is the guarantee the quality of filter material

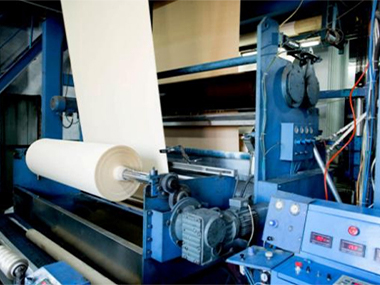

Reasonable control of high temperature hot rolling and setting temperature

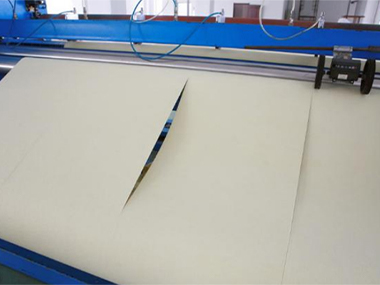

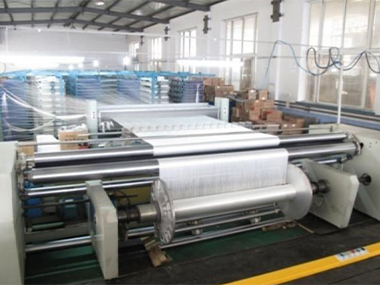

The slitter automatically cuts off, neat, stable size, no deviation
The slitter is used to cut, which provides the premise guarantee for the stability of bag size

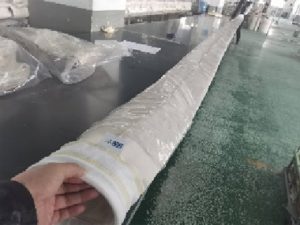

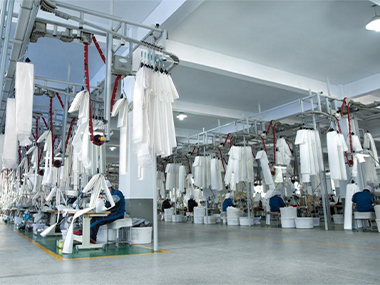

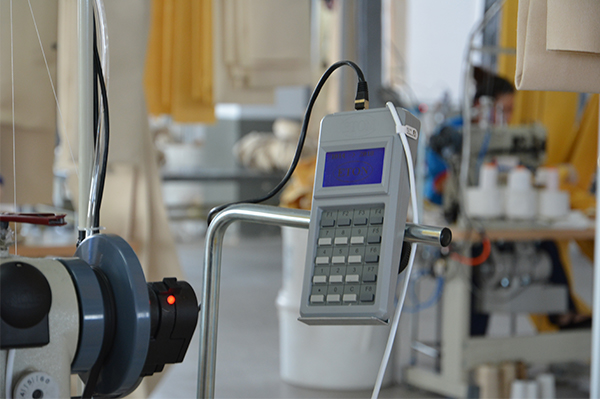

Strictly confirm to Sewing standard

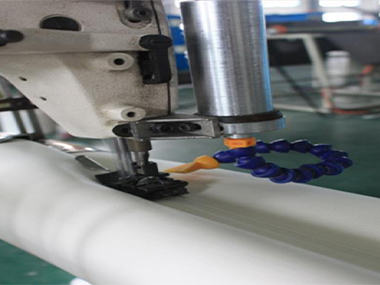

Sewing needle distance. within 100mm±2
Suture width: 22- 25mm.

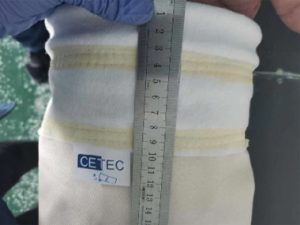

Inner diameter deviation: ±1mm

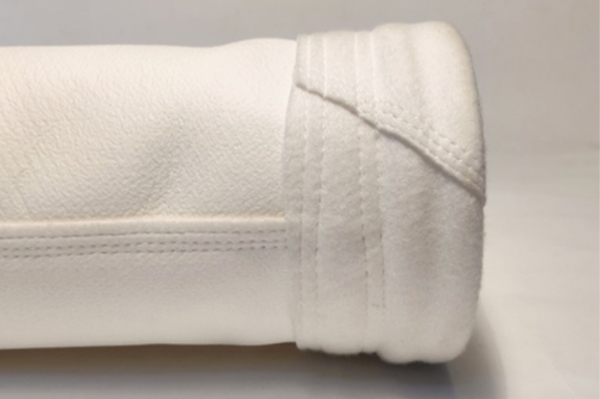

High quality high temperature resistant, corrosion-resistant and high strength sewing thread is selected for middle three stitch
